3 Bolt flensmonterte lagre

3-bolts flensmonterte lagre er kombinasjonene av 3-bolts flenslagerhus og bredere indre ringkulelager.
Vanlige 3-bolts flenslagerhus er FB200 (standard bruk) og FCT200 (lett bruk av seigjern).
Endedeksel av presset stål er i stand til å beskytte mot ekstern forurensning og støv.
Den selvjusterende evnen til kulelagrene kan kompensere for en liten statisk feiljustering av akselen. Lagerinnsatsene til låses til akselen ved hjelp av settskruer og eksentriske låsekrager etc.
Smøremidler fylt inne i de sfæriske kulelagerinnsatsene kan være standardfett, lav-/høytemperaturfett og matvarefett.

Contact Us Kontakt oss
PREV：Flenskassettlagerenheter NESTE：Hengerlagerenheter
  • Spesifikasjoner
  • Kontakt oss

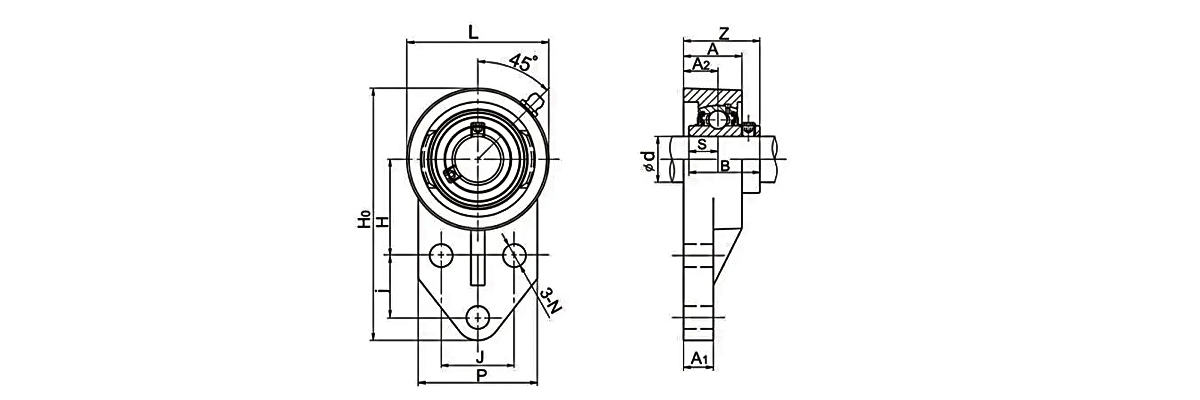

Enhetsnr. Aksel Dia Dimensjoner (mm) Boltstørrelse (mill) Vekt (kg)
d Ho H J j A2 A1 A N L P B S Z
(i) (mm)
UCFB201 12 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.62
UCFB201-8 1/2 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.62
UCFB202 15 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.58
UCFB202-9 16/9 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.58
UCFB202-10 5/8 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.58
UCFB203 17 110 42 32 27 15 13 25.5 10 60 52 31 12.7 33.3 M8 0.57
UCFB203-11 16/11 110 42 32 27 15 13 25.5 10 60 52 31 12.7 33.3 M8 0.57
UCFB204 20 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.62
UCFB204-12 3/4 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.62
UCFB205 25 116 45 34 27 16 13 27 10 68 56 34.1 14.3 35.7 M8 0.69
UCFB205-14 7/8 116 45 34 27 16 13 27 10 68 56 34.1 14.3 35.7 M8 0.69
UCFB205-15 116/5 116 45 34 27 16 13 27 10 68 56 34.1 14.3 35.7 M8 0.69
UCFB205-16 1/1 116 45 34 27 16 13 27 10 68 56 34.1 14.3 35.7 M8 0.69
UCFB206 30 130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB206-17 1/16 130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB206-18 1/8 130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB206-19 16/3 130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB206-20 1/4 130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB207 35 144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.3
UCFB207-20 1/4 144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.3
UCFB207-21 16/5 144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.3
UCFB207-22 3/8 144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.3
UCFB207-23 16/7 144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.3
UCFB208 40 164 60 50 41 21 16 36 12 100 78 49.2 19 51.2 M10 1.8
UCFB208-24 1/2 164 60 50 41 21 16 36 12 100 78 49.2 19 51.2 M10 1.8
UCFB208-25 16/9 164 60 50 41 21 16 36 12 100 78 49.2 19 51.2 M10 1.8
UCFB209 45 174 65 54 43 22 18 38 12 106 80 49.2 19 52.2 M10 2
UCFB209-26 5/8 174 65 54 43 22 18 38 12 106 80 49.2 19 52.2 M10 2
UCFB209-27 16/11 174 65 54 43 22 18 38 12 106 80 49.2 19 52.2 M10 2
UCFB209-28 3/4 174 65 54 43 22 18 38 12 106 80 49.2 19 52.2 M10 2
UCFB210 50 184 68 58 46 22 18 40 12 112 86 51.6 19 54.6 M10 2.3
UCFB210-30 7/8 184 68 58 46 22 18 40 12 112 86 51.6 19 54.6 M10 2.3
UCFB210-31 1-116/5 184 68 58 46 22 18 40 12 112 86 51.6 19 54.6 M10 2.3
UCFB210-32 1/2 184 68 58 46 22 18 40 12 112 86 51.6 19 54.6 M10 2.3

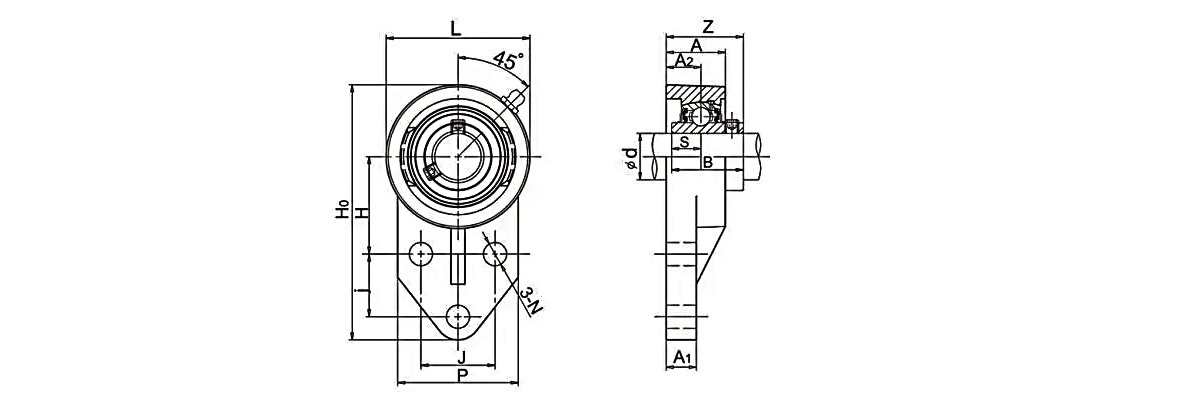

Enhetsnr. Aksel Dia Dimensjoner (mm) Boltstørrelse (mill) Vekt (kg)
d Ho H J j A2 A1 A N L P B S Z
(i) (mm)
UCFB201A 12 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.62
UCFB201-8A 1/2 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.62
UCFB202A 15 107.95 42.86 38.1 22.22 15.88 7.94 25,4 9.92 63.5 60.33 31 12.7 34.18 MS 0.58
UCFB202-9A 16/9 107.95 42.86 38.1 22.22 15.88 7.94 25,4 9.92 63.5 60.33 31 12.7 34.18 MS 0.58
UCFB202-10A 5/8 107.95 42.86 38.1 22.22 15.88 7.94 25,4 9.92 63.5 60.33 31 12.7 34.18 MS 0.58
UCFB203A 17 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.57
UCFB203-11A 16/11 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.57
UCFB204A 20 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.62
UCFB204-12A 3/4 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.62
UCFB205A 25 120.65 46.04 41.27 28.58 17.07 9.53 28.57 9.92 69.85 63.5 34.1 14.3 36.87 M8 0.69
UCFB205-14A 7/8 120.65 46.04 41.27 28.58 17.07 9.53 28.57 9.92 69.85 63.5 34.1 14.3 36.87 M8 0.69
UCFB205-15A 116/5 120.65 46.04 41.27 28.58 17.07 9.53 28.57 9.92 69.85 63.5 34.1 14.3 36.87 M8 0.69
UCFB205-16A 1/1 120.65 46.04 41.27 28.58 17.07 9.53 28.57 9.92 69.85 63.5 34.1 14.3 36.87 M8 0.69
UCFB206A 30 136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB206-17A 1/16 136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB206-18A 1/8 136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB206-19A 16/3 136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB206-20A 1/4 136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB207A 35 155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.3
UCFB207-20A 1/4 155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.3
UCFB207-21A 16/5 155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.3
UCFB207-22A 3/8 155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.3
UCFB207-23A 16/7 155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.3
UCFB208A 40 164.31 60.33 50.01 41.27 21.03 15.88 35.72 11.91 100.01 77.79 49.2 19 51.23 M10 1.8
UCFB208-24A 1/2 164.31 60.33 50.01 41.27 21.03 15.88 35.72 11.91 100.01 77.79 49.2 19 51.23 M10 1.8
UCFB208-25A 16/9 164.31 60.33 50.01 41.27 21.03 15.88 35.72 11.91 100.01 77.79 49.2 19 51.23 M10 1.8

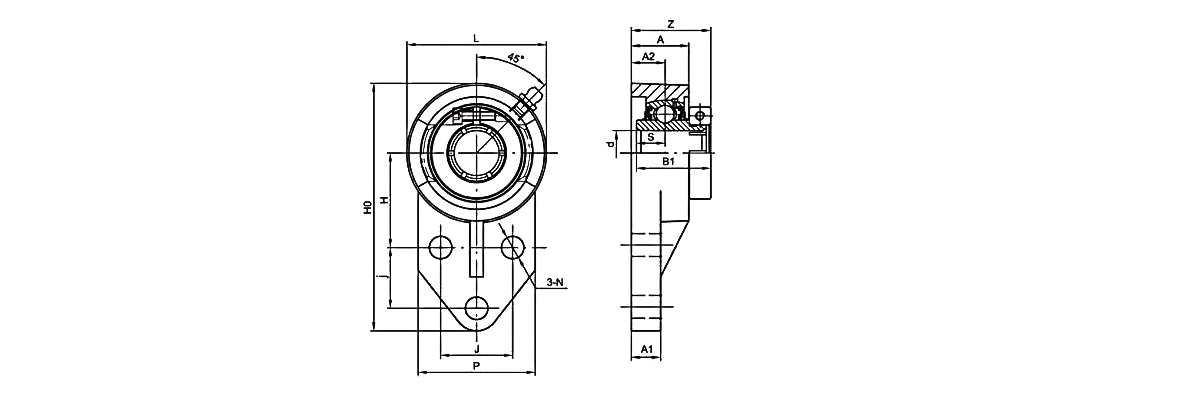

Enhetsnr. Aksel Dia Dimensjoner (mm) Boltstørrelse (mm) Vekt
(kg)
d Ho H J j A2 A1 A N L P B1 S Z
(i) (mm)
UEFB204 20 110 42 32 27 15 13 25.5 10 62 52 33 12.7 35.3 M8 0.692
UEFB204-12 3/4
UEFB205 25 116 45 34 27 16 13 27 10 68 56 35.4 14.3 37.1 M8 0.87
UEFB205-14 7/8
UEFB205-15 116/5
UEFB205-16 1/1
UEFB206 30 130 50 40 29 18 13 31 10 78 65 39.8 15.9 41.9 M8 1.13
UEFB206-17 1/16
UEFB206-18 1/8
UEFB206-19 16/3
UEFB206-20 1/4
UEFB207 35 144 55 46 32 19 15 34 10 90 70 43.9 17.5 45.4 M8 1.5
UEFB207-20 1/4
UEFB207-21 16/5
UEFB207-22 3/8
UEFB207-23 16/7
UEFB208 40 164 60 50 41 21 16 36 12 100 78 50.2 19 52.2 M10 2.07
UEFB208-24 1/2
UEFB208-25 16/9
UEFB209 45 174 65 54 43 22 18 38 12 106 80 50.2 19 53.2 M10 2.43
UEFB209-26 5/8
UEFB209-27 16/11
UEFB209-28 3/4
UEFB210 50 184 68 58 46 22 18 40 12 112 86 52.6 19 55.6 M10 2.8
UEFB210-30 7/8
UEFB210-31 1-116/5
UEFB210-32 1/2

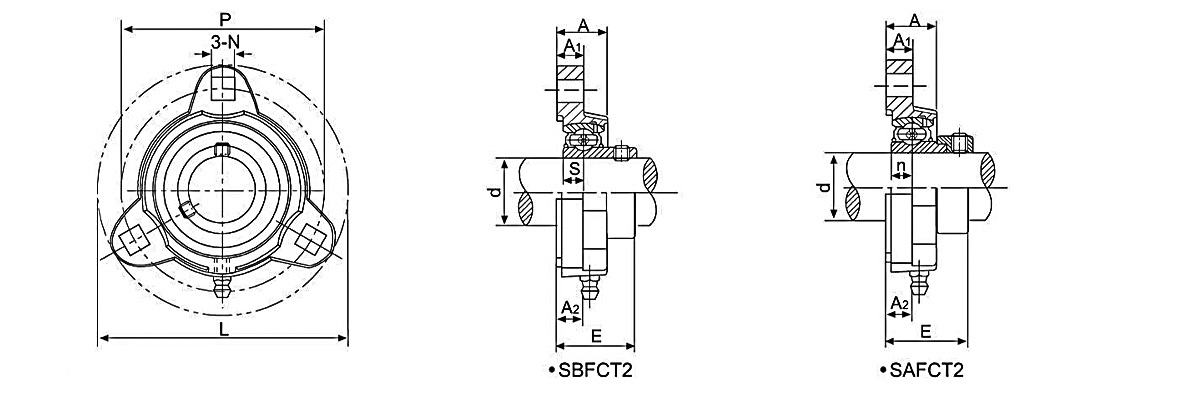

Enhetsnr. Aksel Dia Dimensjoner (mm) Boltstørrelse Peiling
NEI. 		Bolig NR. Vekt (kg)
d L P A1 A A2 N s E
(i) (mm) (mm) (i)
SBFCT201 12 81 63.5 10.7 19.1 10.7 7.1 6 26.7 M6 1/4 SB201 FCT203 0.21
SBFCT201-8 1/2 81 63.5 10.7 19.1 10.7 7.1 6 26.7 M6 1/4 SB201-8 FCT203 0.21
SBFCT202 15 81 63.5 10.7 19.1 10.7 7.1 6 26.7 M6 1/4 SB202 FCT203 0.21
SBFCT202-10 5/8 81 63.5 10.7 19.1 10.7 7.1 6 26.7 M6 1/4 SB202-10 FCT203 0.21
SBFCT203 17 81 63.5 10.7 19.1 10.7 7.1 6 26.7 M6 1/4 SB203 FCT203 0.21
SBFCT203-11 16/11 81 63.5 10.7 19.1 10.7 7.1 6 26.7 M6 1/4 SB203-11 FCT203 0.21
SBFCT204-12 3/4 90.5 71.4 11.1 19.8 11.1 8.7 7 29.1 M8 16/5 SB204-12 FCT204 0.32
SBFCT204 20 90.5 71.4 11.1 19.8 11.1 8.7 7 29.1 M8 16/5 SB204 FCT204 0.32
SBFCT205-14 7/8 95.2 76.2 10.3 19.8 10.3 8.7 7.5 29.8 M8 16/5 SB205-14 FCT205 0.36
SBFCT205-15 116/5 95.2 76.2 10.3 19.8 10.3 8.7 7.5 29.8 M8 16/5 SB205-15 FCT205 0.36
SBFCT205 25 95.2 76.2 10.3 19.8 10.3 8.7 7.5 29.8 M8 16/5 SB205 FCT205 0.36
SBFCT205-16 1/1 95.2 76.2 10.3 19.8 10.3 8.7 7.5 29.8 M8 16/5 SB205-16 FCT205 0.36
SBFCT206-18 1/8 113 90.5 12 22 12 10.3 8 34 M10 3/8 SB206-18 FCT206 0.57
SBFCT206 30 113 90.5 12 22 12 10.3 8 34 M10 3/8 SB206 FCT206 0.57
SBFCT206-19 16/3 113 90.5 12 22 12 10.3 8 34 M10 3/8 SB2206-19 FCT206 0.57
SBFCT206-20 1/4 113 90.5 12 22 12 10.3 8 34 M10 3/8 SB206-20 FCT206 0.57
SBFCT207-20 1/4 122.5 100 12.7 23.8 12.7 10.3 8.5 36.2 M10 3/8 SB207-20 FCT207 0.71
SBFCT207-21 16/5 122.5 100 12.7 23.8 12.7 10.3 8.5 36.2 M10 3/8 SB207-21 FCT207 0.71
SBFCT207-22 3/8 122.5 100 12.7 23.8 12.7 10.3 8.5 36.2 M10 3/8 SB207-22 FCT207 0.71
SBFCT207 35 122.5 100 12.7 23.8 12.7 10.3 8.5 36.2 M10 3/8 SB2207 FCT207 0.71
SBFCT207-23 16/7 122.5 100 12.7 23.8 12.7 10.3 8.5 36.2 M10 3/8 SB207-23 FCT207 0.71

Enhetsnr. Aksel Dia Dimensjoner (mm) Boltstørrelse Peiling
NEI. 		Bolig NR. Vekt (kg)
d L P A1 A A2 s n E
(i) (mm) (mm) (i)
SAFCT201 12 81 63.5 10.7 19.1 10.7 7.1 6.5 32.8 IV16 1/4 SA201 FCT203 0.26
SAFCT201-8 1/2 81 63.5 10.7 19.1 10.7 7.1 6.5 32.8 IV16 1/4 SA201-8 FCT203 0.26
SAFCT202 15 81 63.5 10.7 19.1 10.7 7.1 6.5 32.8 IV16 1/4 SA202 FCT203 0.26
SAFCT202-10 5/8 81 63.5 10.7 19.1 10.7 7.1 6.5 32.8 IV16 1/4 SA202-10 FCT203 0.26
SAFCT203 17 81 63.5 10.7 19.1 10.7 7.1 6.5 32.8 IV16 1/4 SA203 FCT203 0.26
SAFCT203-11 16/11 81 63.5 10.7 19.1 10.7 7.1 6.5 32.8 IV16 1/4 SA203-11 FCT203 0.26
SAFCT204-12 3/4 90.5 71.4 11.1 19.8 11.1 8.7 7.5 34.5 M8 16/5 SA204-12 FCT204 0.34
SAFCT204 20 90.5 71.4 11.1 19.8 11.1 8.7 7.5 34.5 M8 16/5 SA204 FCT204 0.34
SAFCT205-14 7/8 95.2 76.2 10.3 19.8 10.3 8.7 7.5 33.7 M8 16/5 SA205-14 FCT205 0.39
SAFCT205-15 116/5 95.2 76.2 10.3 19.8 10.3 8.7 7.5 33.7 M8 16/5 SA205-15 FCT205 0.39
SAFCT205 25 95.2 76.2 10.3 19.8 10.3 8.7 7.5 33.7 M8 16/5 SA205 FCT205 0.39
SAFCT205-16 1/1 95.2 76.2 10.3 19.8 10.3 8.7 7.5 33.7 M8 16/5 SA205-16 FCT205 0.39
SAFCT206-18 1/8 113 90.5 12 22 12 10.3 9 38.7 M10 3/8 SA206-18 FCT206 0.61
SAFCT206 30 113 90.5 12 22 12 10.3 9 38.7 M10 3/8 SA206 FCT206 0.61
SAFCT206-19 16/3 113 90.5 12 22 12 10.3 9 38.7 M10 3/8 SA206-19 FCT206 0.61
SAFCT206-20 1/4 113 90.5 12 22 12 10.3 9 38.7 M10 3/8 SA206-20 FCT206 0.61
SAFCT207-20 1/4 122.5 100 12.7 23.8 12.7 10.3 9.5 42.1 M10 3/8 SA207-20 FCT207 0.82
SAFCT207-21 16/5 122.5 100 12.7 23.8 12.7 10.3 9.5 42.1 M10 3/8 SA207-21 FCT207 0.82
SAFCT207-22 3/8 122.5 100 12.7 23.8 12.7 10.3 9.5 42.1 M10 3/8 SA207-22 FCT207 0.82
SAFCT207 35 122.5 100 12.7 23.8 12.7 10.3 9.5 42.1 M10 3/8 SA207 FCT207 0.82
SAFCT207-23 16/7 122.5 100 12.7 23.8 12.7 10.3 9.5 42.1 M10 3/8 SA207-23 FCT207 0.82
