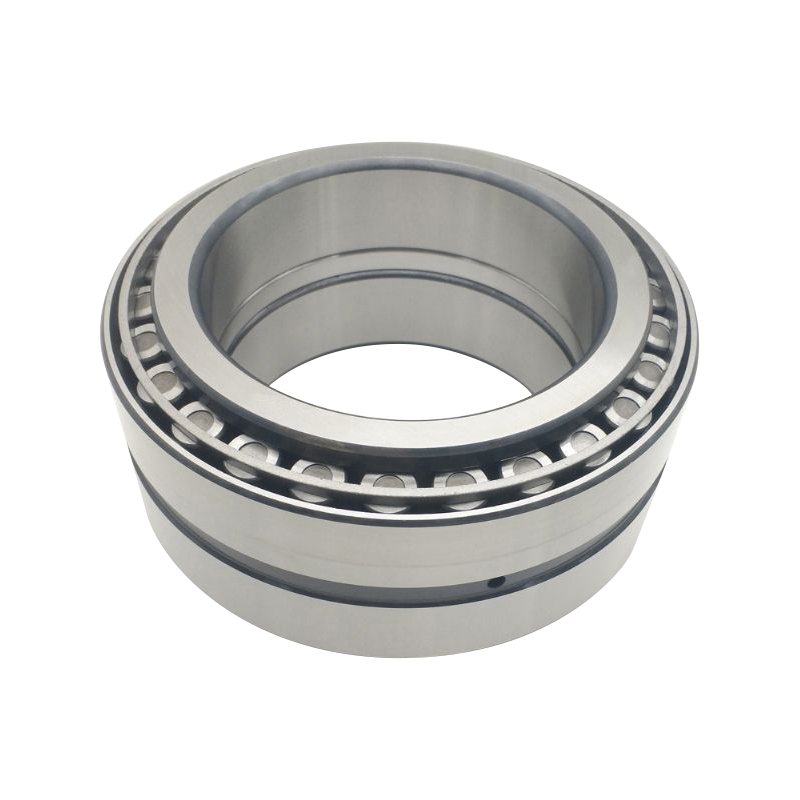

BT2B 332504/HA2 -Dobbelrad koniske rullelager

Dobbeltrads koniske rullelagre er en spesialisert type lager konstruert for å tåle tunge radielle og toveis aksiale belastninger samtidig. De gir en løsning med høy stivhet og stor kapasitet for applikasjoner som girkasser, valseverk og tunnelboremaskiner. Sammenlignet med enkeltradslagre tilbyr de overlegen stivhet, lengre levetid og lavere friksjon.

Kontakt oss

PREV：No previous product NESTE：30202 Enkelrads konisk rullelager

Beskrivelse
Spesifikasjoner
Kontakt oss

Nøkkelfunksjoner og fordeler
· Bæreevne for tung last: Designet for å støtte høye radielle og toveis aksiale belastninger.
·Høy stivhet (stivhet): Gir et stivt lagerarrangement, som er fordelaktig for presisjonsapplikasjoner.
· Aksial plassering/posisjonering: Plasserer akselen aksialt i begge retninger innenfor en innstilt aksial klaring eller under en forspenning.
· Lang levetid: Bruker optimaliserte løpebaneprofiler for å forbedre lastfordelingen, redusere stress og øke slitestyrken.
· Redusert friksjon og støy: Optimalisert rulleendedesign og overflatefinish letter dannelse av smøremiddelfilm, noe som reduserer friksjon og kan redusere støy og vibrasjoner.
· Pålitelighet: Øker driftssikkerheten selv under vanskelige forhold og gir høyere følsomhet for feiljustering.

Bruksområder (applikasjoner)
·I gruveindustrien brukes de til heising og utstyr for tunnelgraving.
·Valseverk har også stor etterspørsel etter koniske rullelager med doble rader.

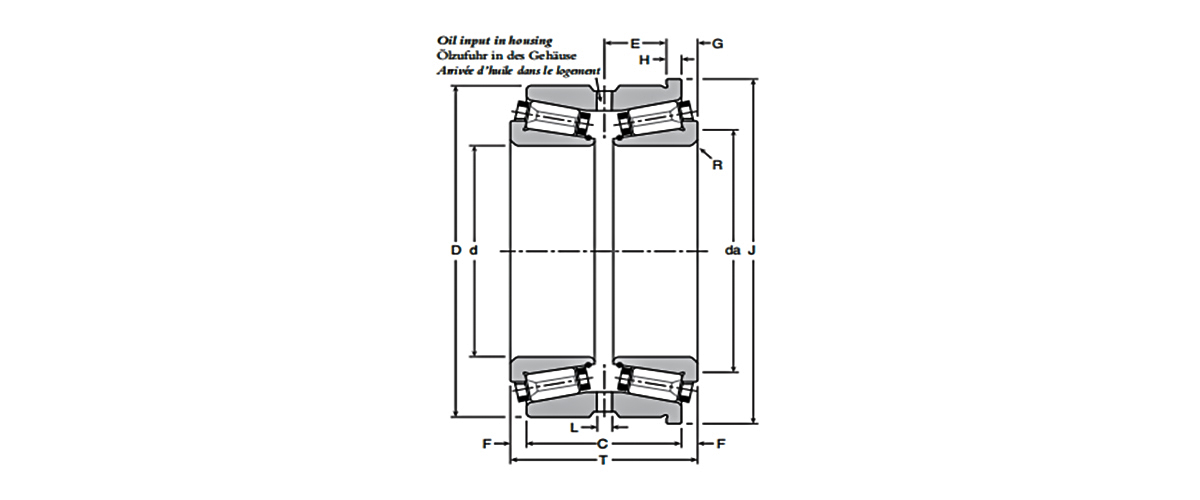

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					Dynamisk	Statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
228.6	488.95		152.4	254	2828.7	4050			205	331945 Lager
260	480		220	284	3897	6615			210	BT2B 328130 Lager
260.35	422.275		139.7	178.592	2016	3645			86.5	BT2B 328187/HA2 Lager
300.038	422.275		136.525	174.625	1959.3	4275			71.5	BT2B 332504/HA2 Lager
317.5	447.675		146.05	180.975	2268.9	4860			84	BT2B 332516 A/HA1 Lager
333.375	469.9		152.4	190.5	2377.8	5130			98	331775 B Lager
340	460		128	160	1976.4	4410			71	BT2B 332830 Lager
346.075	488.95		158.75	200.025	2551.5	5670			110	331981 Lager
355.6	501.65		107.95	155.575	1778.4	3825			87	BT2B 332506/HA2 Lager
360	480		128	160	1989.9	4500			73	BT2B 332831 Lager
368.249	523.875		169.862	214.312	3042	6750			140	BT2B 332603/HA1 Lager
371.475	501.65		107.95	155.575	1778.4	3825			77.4	331606 A Lager
384.175	546.1		177.8	222.25	3351.6	7470			161	331197 A Lager
400	540		135	170	2503.8	5670			106	BT2-8143/HA1 Lager
406.4	539.75		101.6	142.875	1635.3	3960			82.4	BT2B 328389 Lager
415.925	590.55		193.675	244.475	3757.5	8685			205	331656 Lager
431.8	571.5		146.05	192.088	2562.3	6255			127	BT2B 332237 A/HA1 Lager
431.8	571.5		111.125	155.575	1030.5	4590			100	BT2B 332604/HA1 Lager
447.675	635		206.375	257.175	3960	9900			245	BT2B 332176 A Lager
479.425	679.45		222.25	276.225	4509	11430			302	331657 Lager
498.475	634.873		142.875	177.8	2475	6615			125	331605 B Lager
501.65	711.2		231.775	292.1	4950	12330			343	BT2B 332605 A/HA1 Lager
536.575	761.873		247.65	311.15	5643	14400			430	BT2B 332446 Lager
558.8	736.6		177.8	225.425	3861	10440			150	331640 A Lager
571.5	812.8		263.525	333.375	5796	14400			520	BT2B 332447 Lager
602.945	787.4		158.75	206.375	3618	9540			180	331576 B Lager
609.6	820		158.75	206.375	3618	9540			292	331500 Lager
711.2	914.4		139.7	190.5	3420	8685			265	BT2B 328028/HA1 Lager
723.9	914.4		139.7	187.325	3420	8685			250	331554 A Lager
723.9	914.4		139.7	187.325	3420	8685			250	BT2B 331554 B/HA1 Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
762	965.2		133.35	187.325	3222	8820			290	331780 A Lager
774.962	1016		209.63	266.7	6477.3	16200			525	BT2B 332625 Lager
914.4	1066.8		101.6	139.7	2340	7200			190	BT2B 332501/HA5 Lager
1160	1540		290	400	12780	34200			1900	BT2B 332780/HA5 Lager
1250	1500		190	250	6633	20160			795	BT2B 328339/HA4 Lager
240	480	200		220	3253.5	4950			183	BT2B 332931 Lager
300	440	105		105	968.4	1836			48.5	332168 Lager
300.038	422.275	150.812		150.812	1959.3	4275			70	331951 Lager
303.212	495.3	263.525		263.525	4427.1	8820			212	BT2B 332685/HA1 Lager
305.033	560	200		200	1509.3	4770			200	332068 Lager
305.033	560	200		199.263	1509.3	4770			205	BT2B 334087/HA3 Lager
305.07	500	200		200	2460.6	4680			150	332169 A Lager
305.07	500	200		200	2460.6	4680			150	332169 AA Lager
305.07	524	200		200	2460.6	4680			180	BT2B 334110/HA3 Lager
317.5	422.275	128.588		128.588	1606.5	3735			51.5	BT2B 328699 G/HA1 Lager
320	515	160		160	2142.9	3960			160	BT2-8017/HA3 Lager
333.375	469.9	166.688		166.688	2377.8	5130			92.5	BT2B 328695 A/HA1 Lager
342.9	533.4	146.05		139.7	1235.7	3960			115	331713 A Lager
346.075	488.95	174.625		174.625	2551.5	5670			110	331527 C Lager
346.075	488.95	174.625		174.625	2551.5	5670			113	BT2B 328410 C/HA1 Lager
346.075	488.95	95.25		104.775	607.5	2475			62	BT2B 332913/HB1 Lager
360	560	160		160	2300.4	4185			140	BT2-8000/HA3 Lager
380	560	200		200	2691.9	5895			165	BT2-8009/HA3 Lager
384.175	546.1	193.675		193.675	3351.6	7470			152	331158 A Lager
384.175	546.1	193.675		193.675	3351.6	7470			166	BT2B 328580/HA1 Lager
384.175	546.1	193.675		193.675	3351.6	7470			152	BT2B 331837 Lager
385.762	514.35	152.4		152.4	2061	5400			92	BT2B 328035/HA1 Lager
386	574	220		220	2670.3	5895			185	BT2-8010/HA3VA901 Lager
390	546.1	141.288		141.288	2105.1	4590			102	BT2B 328705/HA1 Lager
390	570	200		200	2670.3	5895			170	BT2B 328896/HA3 Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
390	590	200		200	2670.3	5895			200	BT2B 328934/HA3 Lager
390	548	180		180	2295	5265			155	BT2B 334045/HA3 Lager
400	650	240		240	3519	7335			290	332167 Lager
400	650	240		240	3519	7335			305	BT2B 332167 C/HA3 Lager
406.4	546.1	138.113		138.113	2105.1	4590			89	BT2B 331840 C/HA1 Lager
406.4	546.1	138.113		138.113	1980	4590			89	BT2B 331840 G/HA1C150 Lager
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085 A/HA1VA928 Lager
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085/HA1VA901 Lager
408.4	546.1	125		150	1766.7	4275			99	BT2B 328466/HA1 Lager
408.4	546.1	98		120	1442.7	3105			76.5	BT2B 328874/HA1 Lager
415.925	590.55	209.55		209.55	3757.5	8685			192	331445 Lager
415.925	590.55	209.55		209.55	3757.5	8685			192	BT2B 328283/HA1 Lager
420	620	200		200	2673	6480			210	BT2-8016/HA3 Lager
430	535	84		84	972	2700			44.5	BT2B 334013/HA1 Lager
445	620	160		160	1908	4590			135	BT2B 334069/HA3 Lager
445	620	180		180	1908	4590			160	BT2B 334113/HA3VA901 Lager
447.675	635	223.838		223.838	3960	9900			236	331562 Lager
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 B/HB1 Lager
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 C/HA1 Lager
450	595	178		178	2852.1	7335			140	BT2B 328523/HA1 Lager
460	680	180		180	2826	6255			210	BT2B 328876/HA1 Lager
460	680	180		180	2826	6255			250	BT2B 334030/HA1 Lager
464	615	136		150	1944	5265			133	BT2-8215 Lager
482	640	160		160	1584	4680			145	BT2B 334112/HA3 Lager
482.6	733.425	190		190	2574	7470			293	BT2-8142/HA3 Lager
489.026	634.873	152.4		152.4	2475	6615			130	BT2B 331848 Lager
500	730	280		280	5940	14040			420	331676 A Lager
501.65	711.2	250.825		250.825	4950	12330			330	331182 Lager
501.65	711.2	250.825		250.825	4950	12330			330	331182 A Lager
519.113	736.6	258.762		258.762	5445	14040			370	BT2B 332662 B/HB1 Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
519.113	736.6	258.762		258.762	5445	14040			370	BT2B 332662/HB1 Lager
536.575	761.873	269.875		269.875	5643	14400			410	331682 Lager
558.8	736.6	196.85		196.85	3861	10440			235	331607 B Lager
560	820	242		242	4509	10260			425	BT2B 332626/HA7 Lager
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331476 AG/HA1 Lager
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331854 C/HA1 Lager
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331854/HA1 Lager
580	830	280		280	6138	14940			515	331677 Lager
609.6	787.4	171.45		171.45	3618	9540			218	BT2B 331858/HA1 Lager
609.6	820	171.45		171.45	3618	9540			265	BT2B 332424/HA3 Lager
635	939.8	304.8		304.8	6039	14940			720	331555 B Lager
650	1030	270		270	7920	16470			900	BT2B 328306/HA4 Lager
660.4	812.8	176.212		176.212	3222	10080			195	331198 Lager
690	980	355		355	9204.3	22500			890	BT2-8164/HA4 Lager
800	1260	375		375	13230	30150			1850	BT2B 334032/HA4 Lager
901.7	1295.4	438.15		450.85	15120	38700			2000	331306 Lager
939.8	1333.5	463.55		463.55	15840	44100			2230	331350 Lager
110	180		76	95	400	730			8.63	352122 Lager
120	200		90	110	508	910			11.7	352124 Lager
130	200		80	102	450	800			9.72	352026 Lager
130	210		90	110	540	1000			13.5	352126 Lager
140	210		82	104	480	830			10.9	352028 Lager
140	225		90	115	560	1100			15.5	352128 Lager
150	225		86	110	500	900			14.5	352030 Lager
150	250		112	138	778	1560			25.8	352130 Lager
160	240		90	116	700	1300			16.5	352032 Lager
160	270		120	150	990	2160			34.9	352132 Lager
170	260		100	128	830	1800			21	352034 Lager
170	280		120	150	1100	2400			35.6	352134 Lager
180	280		110	142	1005	2340			27.9	352036 Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
180	300		134	164	1290	2500			43.2	352136 Lager
190	290		110	142	1005	2340			28.8	352038 Lager
190	320		130	170	1160	2410			50.4	352138 Lager
200	310		120	154	1500	2900			41.9	352040 Lager
200	340		150	184	1600	3300			61.5	352140 Lager
220	340		128	166	1210	2500			42.7	352044 Lager
220	370		150	195	1700	3200			76.3	352144 Lager
240	360		128	166	1430	3200			52.8	352048 Lager
240	400		163	210	2000	4100			98.1	352148 Lager
260	400		146	190	1530	3630			75.6	352052 Lager
260	440		180	225	2200	4600			126	352152 Lager
280	420		146	190	1820	4050			81.3	352056 Lager
300	460		168	220	2200	5300			117	352060 Lager
25	52	19	36.5	39.75				13300	0.34	74025/74052PT Lager
30	62	23	42.5	46.75				11600	0.535	70030/70062PT Lager
30	66.675	23.5	42.48	47.24				10400	0.63	80030/80066XPT lager
30	68	23.5	42.48	47.24				10400	0.63	80030/80068PT Lager
31.75	72	26	46.5	51.75				9600	0.75	100031X/100072PT Lager
31.75	76.2	26	46.5	51.75				9600	0.75	100031X/100076XPT lager
31.75	80	26	46.5	51.75				9600	0.75	100031X/100080PT Lager
33.338	66.675	23.5	42.48	47.24				10400	0.63	80033X/80066XPT lager
33.338	68	23.5	42.48	47.24				10400	0.63	80033X/80068PT lager
34.925	72	26	46.5	51.75				9600	0.75	100034X/100072PT Lager
34.925	76.2	26	46.5	51.75				9600	0.75	100034X/100076XPT lager
34.925	80	26	46.5	51.75				9600	0.75	100034X/100080PT lager
35	66.675	23.5	42.48	47.24				10400	0.6	80035/80066XPT lager
35	68	23.5	42.48	47.24				10400	0.63	80035/80068PT Lager
35	72	26	46.5	51.75				9600	0.75	100035/100072PT Lager
35	76.2	26	46.5	51.75				9600	0.75	100035/100076XPT lager
35	80	26	46.5	51.75				9600	0.75	100035/100080PT Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
38.1	76	26	45.5	51.25				8800	0.92	101038X/101076PT Lager
38.1	76.2	26	45.5	51.25				8800	0.92	101038X/101076XPT lager
38.1	80	26	45.5	51.25				8800	0.92	101038X/101080PT lager
40	76.2	26	45.5	51.25				8800	0.92	101040/101076XPT lager
40	80	26	45.5	51.25				8800	0.915	101040/101080PT Lager
40	85	24.5	48.66	51.83				8200	1.025	112040/112085PT Lager
41.275	76	26	45.5	51.25				8800	0.92	101041X/101076PT Lager
41.275	76.2	26	45.5	51.25				8800	0.92	101041X/101076XPT lager
41.275	80	26	45.5	51.25				8800	0.92	101041X/101080PT Lager
41.275	85	24.5	48.66	51.83				8200	1.03	112041X/112085PT Lager
44.45	85	24.5	48.66	51.83				8200	1.03	112044X/112085PT Lager
44.45	85	28	55.66	58.83				8200	1.07	119044X/119085PT Lager
44.45	88.9	28	55.66	58.83				8200	1.07	119044X/119088XPT lager
44.45	90	29	51.3	57.65				7400	1.17	111044X/111090PT Lager
44.45	93.266	29	51.3	57.65				7400	1.17	111044X/111093XPT Lager
45	85	24.5	48.66	51.83				8200	0.965	112045/112085PT Lager
45	85	28	55.66	58.83				8200	1.07	119045/119085PT Lager
45	88.9	28	55.66	58.83				8200	1.07	119045/119088XPT lager
50	90	29	51.3	57.65				7400	1.17	111050/111090PT Lager
50	93.266	29	51.3	57.65				7400	1.17	111050/111093XPT lager
50	96.838	29.5	54	59.5				6900	1.63	110050/110096XPT lager
50	98.425	29.5	54	59.5				6900	1.63	110050/110098XPT lager
50	100	29.5	54	59.5				6900	1.63	110050/110100PT Lager
50.8	90	29	51.3	57.65				7400	1.17	111050X/111090PT Lager
50.8	96.838	29.5	54	59.5				6900	1.63	110050X/110096XPT lager
50.8	98.425	29.5	54	59.5				6900	1.63	110050X/110098XPT lager
50.8	100	29.5	54	59.5				6900	1.63	110050X/110100PT Lager
53.975	96.838	29.5	54	59.5				6900	1.63	110053X/110096XPT lager
53.975	98.425	29.5	54	59.5				6900	1.63	110053X/110098XPT lager
53.975	100	29.5	54	59.5				6900	1.63	110053X/110100PT Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
55	96.838	29.5	54	59.5				6900	1.63	110055/110096XPT lager
55	98.425	29.5	54	59.5				6900	1.63	110055/110098XPT lager
55	100	29.5	54	59.5				6900	1.54	110055/110100PT Lager
57.15	96.838	29.5	54	59.5				6900	1.63	110057X/110096XPT lager
57.15	98.425	29.5	54	59.5				6900	1.63	110057X/110098XPT lager
57.15	100	29.5	54	59.5				6900	1.63	110057X/110100PT Lager
57.15	100	26.5	46.88	52.44				6600	1.38	113057X/113100PT Lager
57.15	101.6	26.5	46.88	52.44				6600	1.38	113057X/113101XPT Lager
57.15	110	33	60.3	66.65				6200	2.03	120057X/120110PT Lager
57.15	112.712	33	60.3	66.65				6200	2.03	120057X/120112XPT lager
60	100	26.5	46.88	52.44				6600	1.38	113060/113100PT Lager
60	101.6	26.5	46.88	52.44				6600	1.38	113060/113101XPT lager
60	110	33	60.3	66.65				6200	2.03	120060/120110PT Lager
60	112.712	33	60.3	66.65				6200	2.03	120060/120112XPT lager
60	120	32	59.88	65.44				5700	2.45	130060/130120PT Lager
60	127	32	59.88	65.44				5700	2.45	130060/130127PT Lager
60.325	100	26.5	46.88	52.44				6600	1.38	113060X/113100PT Lager
60.325	101.6	26.5	46.88	52.44				6600	1.38	113060X/113101XPT lager
63.5	110	33	60.3	66.65				6200	1.94	120063X/120110PT Lager
63.5	120	32	59.88	65.44				5700	2.45	130063X/130120PT Lager
63.5	127	32	59.88	65.44				5700	2.45	130063X/130127PT Lager
65	120	32	59.88	65.44				5700	2.45	130065/130120PT Lager
65	127	32	59.88	65.44				5700	2.45	130065/130127PT Lager
69.85	112.712	33	60.3	66.65				5800	1.83	124069X/124112XPT lager
69.85	120	32	59.88	65.44				5700	2.32	130069X/130120PT Lager
69.85	120	42	73.12	81.06				5700	3.05	135069X/135120PT Lager
69.85	127	32	59.88	65.44				5700	2.45	130069X/130127PT Lager
70	112.712	33	60.3	66.65				5800	1.83	124070/124112XPT lager
70	120	32	59.88	65.44				5700	2.32	130070/130120PT Lager
70	127	32	59.88	65.44				5700	2.45	130070/130127PT Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
75	127	33.5	60.5	66.75				5300	2.79	133075/133127PT Lager
75	130	33.5	60.5	66.75				5300	2.79	133075/133130PT Lager
75	133.35	33.5	60.5	66.75				5300	2.79	133075/133133XPT lager
75	136.525	33.5	60.5	66.75				5300	2.79	133075/133136XPT lager
76.2	127	33.5	60.5	66.75				5300	2.79	133076X/133127PT Lager
76.2	130	33.5	60.5	66.75				5300	2.79	133076X/133130PT Lager
76.2	133.35	33.5	60.5	66.75				5300	2.79	133076X/133133XPT lager
76.2	136.525	33.5	60.5	66.75				5300	2.79	133076X/133136XPT lager
80	140	38.5	69.14	77.07				4900	3.78	140080/140140PT Lager
82.55	140	38.5	69.14	77.07				4900	3.68	140082X/140140PT Lager
85	140	38.5	69.14	77.07				4900	3.58	140085/140140PT Lager
85	170	50.5	89	97.5				4200	7.34	210085/210170PT Lager
90	133.35	34	60.12	68.06				4800	2.82	117090/117133XPT lager
90	150	33.75	62	68.5				4400	3.8	131090/131150PT Lager
90	152.4	33.75	62	68.5				4400	3.8	131090/131152XPT lager
90	152.4	42	78.5	83.9				4300	4.3	160090/160152XPT lager
90	158.75	33.75	62	68.5				4400	3.8	131090/131158XPT Lager
90	158.75	42	78.5	83.9				4300	4.3	160090/160158XPT lager
90	160	42	78.5	83.9				4300	4.3	160090/160160PT Lager
90	161.925	42	78.5	83.9				4300	4.3	160090/160161XPT lager
90	170	50.5	89	97.5				4200	7.34	210090/210170PT Lager
92.075	150	33.75	62	68.5				4400	3.8	131092X/131150PT Lager
92.075	152.4	33.75	62	68.5				4400	3.8	131092X/131152XPT Lager
92.075	158.75	33.75	62	68.5				4400	3.8	131092X/131158XPT Lager
93.663	150	33.75	62	68.5				4400	3.8	131093X/131150PT Lager
93.663	152.4	33.75	62	68.5				4400	3.8	131093X/131152XPT Lager
93.663	158.75	33.75	62	68.5				4400	3.8	131093X/131158XPT Lager
95	150	33.75	62	68.5				4400	3.8	131095/131150PT Lager
95	152.4	33.75	62	68.5				4400	3.74	131095/131152XPT Lager
95	152.4	42	75.8	83.9				4300	4.5	160095/160152XPT lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
95	158.75	33.75	62	68.5				4400	3.8	131095/131158XPT Lager
95	170	50.5	89	97.5				4200	7.34	210095/210170PT Lager
97	150	33.75	62	68.5				4400	3.8	131097/131150PT Lager
97	152.4	33.75	62	68.5				4400	3.66	131097/131152XPT Lager
97	158.75	33.75	62	68.5				4400	3.8	131097/131158XPT Lager
98.425	152.4	42	75.8	83.9				4300	4.3	160098X/160152XPT lager
98.425	158.75	42	78.5	83.9				4300	4.3	160098X/160158XPT lager
98.425	160	42	78.5	83.9				4300	4.3	160098X/160160PT Lager
98.425	161.925	42	78.5	83.9				4300	4.3	160098X/160161XPT lager
100	170	46	84	92				3900	7.67	180100/180170PT Lager
100	180	46	84	92				3900	7.67	180100/180180PT Lager
100	180.975	46	84	92				3900	7.67	180100/180180XPT lager
100	190	46	84	92				3900	9.58	180100/180190PT Lager
101.6	165.1	39.5	63.51	73.03				3900	5.68	141101X/141165XPT lager
101.6	170	46	84	92				3900	7.67	180101X/180170PT lager
101.6	180	46	84	92				3900	7.67	180101X/180180PT lager
101.6	180.975	46	84	92				3900	7.81	180101X/180180XPT lager
101.6	190	46	84	92				3900	9.56	180101X/180190PT lager
105	170	46	84	92				3900	7.67	180105/180170PT Lager
105	180	46	84	92				3900	7.67	180105/180180PT Lager
105	180.975	46	84	92				3900	7.58	180105/180180XPT lager
105	190	46	84	92				3900	9.38	180105/180190PT Lager
107.95	165.1	39.5	63.51	73.03				3900	5.68	141107X/141165XPT lager
111.125	180.975	50	82.6	95.3				3600	7.03	181111X/181180XPT lager
111.125	190	50	82.6	95.3				3600	8.68	181111X/181190PT lager
111.125	190.5	50	82.6	95.3				3600	8.78	181111X/181190XPT lager
111.125	200.025	50	82.6	95.3				3600	8.68	181111X/181200XPT lager
115	165	31	55	60				3900	2.85	105115/105165PT Lager
115	180.975	50	82.6	95.3				3600	6.78	181115/181180XPT lager
115	190	50	82.6	95.3				3600	8.43	181115/181190PT Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
115	190.5	50	82.6	95.3				3600	8.53	181115/181190XPT lager
115	200.025	50	82.6	95.3				3600	8.68	181115/181200XPT lager
118	180.975	50	82.6	95.3				3600	6.57	181118/181180XPT lager
118	190	50	82.6	95.3				3600	8.13	181118/181190PT Lager
118	190.5	50	82.6	95.3				3600	8.23	181118/181190XPT lager
118	200.025	50	82.6	95.3				3600	8.68	181118/181200XPT lager
120	165	31	55	60				3900	2.85	105120/105165PT Lager
120	190	50	82.6	95.3				3500	7.45	184120/184190PT Lager
120	190.5	5	82.6	95.3				3500	7.45	184120/184190XPT lager
120	199	5	82.6	95.3				3500	7.45	184120/184199PT Lager
120	200	5	82.6	95.3				3500	7.45	184120/184200PT Lager
127	175	31	55	60				3900	2.85	109127X/109175PT Lager
127	196.85	42	85.74	93.67				3400	7.42	164127X/164196XPT lager
127	200.025	42	85.74	93.67				3400	7.42	164127X/164200XPT lager
127	215	51	92	101				3100	11.05	200127X/200215PT Lager
127	215.9	51	92	101				3100	11.05	200127X/200215XPT lager
133.35	196.85	42	85.74	93.67				3400	7.42	164133X/164196XPT lager
133.35	200.025	42	85.74	93.67				3400	7.42	164133X/164200XPT lager
133.35	215	51	92	101				3100	11.05	200133X/200215PT Lager
133.35	215.9	51	92	101				3100	10.55	200133X/200215XPT lager
136.525	215	51	92	101				3100	11.05	200136X/200215PT Lager
136.525	215.9	51	92	101				3100	10.25	200136X/200215XPT lager
139.7	215	51	92	101				3100	11.05	200139X/200215PT Lager
139.7	215.9	51	92	101				3100	11.05	200139X/200215XPT lager
139.7	241.3	59	104	115				2900	17.7	240139X/240241XPT lager
140	200	42	73	80.15				3100	6.38	161140/161200PT Lager
140	200.025	42	73	80.15				3100	6.38	161140/161200XPT lager
142.875	200	42	73	80.15				3100	6.38	161142X/161200PT Lager
142.875	200.025	42	73	80.15				3100	6.38	161142X/161200XPT lager
145	241.3	59	104	115				2900	17.15	240145/240241XPT lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
145	256	51	92	101				2700	11.83	203145/203256PT Lager
149.225	241.3	59	104	115				2900	17.15	240149X/240241XPT lager
150	210	42	76	84				3000	9.1	163150/163210PT Lager
152.4	222.25	49	81.2	93.1				3000	9.08	183152X/183222XPT lager
152.4	254	74	116.9	135.95				2600	21.72	281152X/281254XPT lager
152.4	266.7	74	116.9	135.95				2600	21.72	281152X/281266XPT lager
155.575	254	74	116.9	135.95				2600	21.72	281155X/281254XPT lager
155.575	266.7	74	116.9	135.95				2600	21.72	281155X/281266XPT lager
156	235	51	92	101				2700	11.83	203156/203235PT Lager
165.1	254	50	88.96	98.48				2600	12.7	186165X/186254XPT lager
170	254	50	88.96	98.48				2600	12.7	186170/186254XPT lager
177.8	227.013	35	63.48	69.24				2700	5.07	115177X/115227XPT lager
177.8	254	50	88.96	98.48				2600	12.7	186177X/186254XPT lager
177.8	288.925	71	122.25	138.12				2300	27.2	280177X/280288XPT lager
185	258	50	90	100				2500	12	187185/187258PT Lager
190.5	282.575	54	91.42	105.71				2300	14.1	242190X/242282XPT lager
190.5	290	52	96	105				2200	14.2	206190X/206290PT lager
203.2	310	72	121.08	138.54				2100	25	283203X/283310PT Lager
203.2	317.5	72	121.08	138.54				2100	25	283203X/283317XPT lager
210	290	52	96	105				2200	13.1	206210/206290PT Lager
210	310	72	121.08	138.54				2100	25	283210/283310PT Lager
210	317.5	72	121.08	138.54				2100	25	283210/283317XPT lager
230	327.025	55	90.24	106.12				1900	21	244230/244327XPT lager
230	330	55	90.24	106.12				1900	21	244230X/244330PT Lager
234.95	327.025	55	90.24	106.12				1900	21	244234X/244327XPT lager
234.95	330	55	90.24	106.12				1900	21	244234X/244330PT Lager
260	385	66	114.34	130.12				1700	32	382260/382385PT Lager
25	52		36.5	43				13300	0.46	74025/74052GUD Lager
30	62		42.5	51				11600	0.64	70030/70062GUD Lager
30	66.675		42.48	52				10400	0.78	80030/80066XGUD Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
30	68		42.48	52				10400	0.78	80030/80068GUD Lager
32	72		46.5	57				9600	0.825	100031X/100072GUD Lager
32	76.2		46.5	57				9600	0.825	100031X/100076XGUD Lager
32	80		46.5	57				9600	0.825	100031X/100080GUD Lager
33	66.675		42.48	52				10400	0.78	80033X/80066XGUD Lager
33	68		42.48	52				10400	0.78	80033X/80068GUD Lager
35	72		46.5	57				9600	0.825	100034X/100072GUD Lager
35	76.2		46.5	57				9600	0.825	100034X/100076XGUD Lager
35	80		46.5	57				9600	0.825	100034X/100080GUD Lager
35	66.675		42.48	52				10400	0.72	80035/80066XGUD Lager
35	68		42.48	52				10400	0.75	80035/80068GUD Lager
35	72		46.5	57				9600	0.825	100035/100072GUD Lager
35	76.2		46.5	57				9600	0.825	100035/100076XGUD Lager
35	80		46.5	57				9600	0.825	100035/100080GUD Lager
36	72		36.5	42				9600	0.58	102036/102072GUD Lager
38	76		45.5	57				8800	0.85	101038X/101076GUD Lager
38	76.2		45.5	57				8800	0.85	101038X/101076XGUD Lager
38	80		45.5	57				8800	0.85	101038X/101080GUD Lager
40	76		45.5	57				8800	0.85	101040/101076GUD Lager
40	76.2		45.5	57				8800	0.85	101040/101076XGUD Lager
40	80		45.5	57				8800	1.025	101040/101080GUD Lager
40	85		48.66	55				8200	1.19	112040/112085GUD Lager
41	76		45.5	57				8800	0.85	101041X/101076GUD Lager
41	76.2		45.5	57				8800	0.85	101041X/101076XGUD Lager
41	80		45.5	57				8800	0.85	101041X/101080GUD Lager
41	85		48.66	55				8200	1.07	112041X/112085GUD Lager
44	90		51.3	64				7400	1.33	111044X/111090GUD Lager
44	93.266		51.3	64				7400	1.33	111044X/111093XGUD Lager
44	85		48.66	55				8200	1.07	112044X/112085GUD Lager
44	85		55.66	62				8200	1.17	119044X/119085GUD Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
44	88.9		55.66	62				8200	1.17	119044X/119088XGUD Lager
45	85		48.66	55				8200	1.07	112045/112085GUD Lager
45	85		55.66	62				8200	1.17	119045/119085GUD Lager
45	88.9		55.66	62				8200	1.17	119045/119088XGUD Lager
50	90		51.3	64				7400	1.33	111050/111090GUD Lager
50	93.266		51.3	64				7400	1.33	111050/111093XGUD Lager
50	96.838		54	65				6900	1.945	110050/110096XGUD Lager
50	98.425		54	65				6900	1.945	110050/110098XGUD Lager
50	100		54	65				6900	1.945	110050/110100GUD Lager
51	90		51.3	64				7400	1.33	111050X/111090GUD Lager
51	96.838		54	65				6900	1.945	110050X/110096XGUD Lager
51	98.425		54	65				6900	1.945	110050X/110098XGUD Lager
51	100		54	65				6900	1.945	110050X/110100GUD Lager
54	96.838		54	65				6900	1.945	110053X/110096XGUD Lager
54	98.425		54	65				6900	1.945	110053X/110098XGUD Lager
54	100		54	65				6900	1.945	110053X/110100GUD Lager
55	96.838		54	65				6900	1.945	110055/110096XGUD Lager
55	98.425		54	65				6900	1.945	110055/110098XGUD Lager
55	100		54	65				6900	1.765	110055/110100GUD Lager
57	96.838		54	65				6900	1.945	110057X/110096XGUD Lager
57	98.425		54	65				6900	1.945	110057X/110098XGUD Lager
57	100		54	65				6900	1.945	110057X/110100GUD Lager
57	100		46.88	58				6600	1.825	113057X/113100GUD Lager
57	101.6		46.88	58				6600	1.825	113057X/113101XGUD Lager
57	110		60.3	73				6200	2.39	120057X/120110GUD Lager
57	112.712		60.3	73				6200	2.39	120057X/120112XGUD Lager
60	100		46.88	58				6600	1.825	113060/113100GUD Lager
60	101.6		46.88	58				6600	1.825	113060/113101XGUD Lager
60	110		60.3	73				6200	2.39	120060/120110GUD Lager
60	112.712		60.3	73				6200	2.39	120060/120112XGUD Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
60	120		59.88	71				5700	2.86	130060/130120GUD Lager
60	127		59.88	71				5700	2.86	130060/130127GUD Lager
60	100		46.88	58				6600	1.825	113060X/113100GUD Lager
60	101.6		46.88	58				6600	1.825	113060X/113101XGUD Lager
64	110		60.3	73				6200	2.21	120063X/120110GUD Lager
64	120		59.88	71				5700	2.86	130063X/130120GUD Lager
64	127		59.88	71				5700	2.86	130063X/130127GUD Lager
65	120		59.88	71				5700	2.86	130065/130120GUD Lager
65	127		59.88	71				5700	2.86	130065/130127GUD Lager
70	112.712		60.3	73				5800	2.015	124069X/124112XGUD Lager
70	120		59.88	71				5700	2.61	130069X/130120GUD Lager
70	120		73.12	89				5700	2.73	135069X/135120GUD Lager
70	127		59.88	71				5700	2.86	130069X/130127GUD Lager
70	112.712		60.3	73				5800	2.015	124070/124112XGUD Lager
70	120		59.88	71				5700	2.64	130070/130120GUD Lager
70	127		59.88	71				5700	2.86	130070/130127GUD Lager
73	120		49.7	64				5500	2.35	123073X/123120GUD Lager
73	120.65		49.7	64				5500	2.35	123073X/123120XGUD Lager
73	121.444		49.7	64				5500	2.35	123073X/123121XGUD Lager
73	123.825		49.7	64				5500	2.35	123073X/123123XGUD Lager
75	120		49.7	64				5500	2.25	123075/123120GUD Lager
75	120.65		49.7	64				5500	2.25	123075/123120XGUD Lager
75	121.444		49.7	64				5500	2.25	123075/123121XGUD Lager
75	123.825		49.7	64				5500	2.25	123075/123123XGUD Lager
75	127		60.5	73				5300	3.23	133075/133127GUD Lager
75	130		60.5	73				5300	3.23	133075/133130GUD Lager
75	133.35		60.5	73				5300	3.23	133075/133133XGUD Lager
75	136.525		60.5	73				5300	3.23	133075/133136XGUD Lager
76	120		49.7	64				5500	2.25	123076X/123120GUD Lager
76	120.65		49.7	64				5500	2.25	123076X/123120XGUD Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
76	123.825		49.7	64				5500	2.25	123076X/123123XGUD Lager
76	127		60.5	73				5300	3.23	133076X/133127GUD Lager
76	130		60.5	73				5300	3.23	133076X/133130GUD Lager
76	133.35		60.5	73				5300	3.23	133076X/133133XGUD Lager
76	136.525		60.5	73				5300	3.23	133076X/133136XGUD Lager
78	120		49.7	64				5500	2.25	123077X/123120GUD Lager
78	120.65		49.7	64				5500	2.25	123077X/123120XGUD Lager
78	121.444		49.7	64				5500	2.25	123077X/123121XGUD Lager
78	123.825		49.7	64				5500	2.25	123077X/123123XGUD Lager
80	140		69.14	85				4900	4.345	140080/140140GUD Lager
81	133.35		58.12	74				4900	2.25	126080X/126133XGUD Lager
83	133.35		58.12	74				4900	2.25	126082X/126133XGUD Lager
83	136.525		58.12	74				4900	2.25	126082X/126136XGUD Lager
83	140		69.14	85				4900	4.145	140082X/140140GUD Lager
84	133.35		58.12	74				4900	2.4	126084X/126133XGUD Lager
84	136.525		58.12	74				4900	2.4	126084X/126136XGUD Lager
85	140		69.14	85				4900	3.945	140085/140140GUD Lager
85	170		89	106				4200	8.345	210085/210170GUD Lager
86	133.35		58.12	74				4900	2.4	126085X/126133XGUD Lager
86	136.525		58.12	74				4900	2.4	126085X/126136XGUD Lager
89	133.35		58.12	74				4900	2.4	126088X/126133XGUD Lager
89	136.525		58.12	74				4900	2.4	126088X/126136XGUD Lager
90	133.35		60.12	76				4800	3.9	117090/117133XGUD Lager
90	170		89	106				4200	8.345	210090/210170GUD Lager
90	150		62	75				4400	4.625	131090/131150GUD Lager
90	152.4		62	75				4400	4.625	131090/131152XGUD Lager
90	158.75		62	75				4400	4.625	131090/131158XGUD Lager
90	152.4		75.8	92				4300	4.95	160090/160152XGUD Lager
90	158.75		75.8	92				4300	4.95	160090/160158XGUD Lager
90	160		75.8	92				4300	4.95	160090/160160GUD Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
90	161.925		75.8	92				4300	4.95	160090/160161XGUD Lager
92	150		62	75				4400	4.625	131092X/131150GUD Lager
92	152.4		62	75				4400	4.625	131092X/131152XGUD Lager
92	158.75		62	75				4400	4.625	131092X/131158XGUD Lager
94	152.4		62	75				4400	4.625	131093X/131152XGUD Lager
94	150		62	75				4400	4.625	131093X/131150GUD Lager
94	158.75		62	75				4400	4.625	131093X/131158XGUD Lager
95	150		62	75				4400	4.625	131095/131150GUD Lager
95	152.4		62	75				4400	4.505	131095/131152XGUD Lager
95	158.75		62	75				4400	4.625	131095/131158XGUD Lager
95	170		89	106				4200	8.345	210095/210170GUD Lager
97	152.4		62	75				4400	4.345	131097/131152XGUD Lager
97	150		62	75				4400	4.625	131097/131150GUD Lager
97	158.75		62	75				4400	4.625	131097/131158XGUD Lager
98	152.4		75.8	92				4300	4.95	160098X/160152XGUD Lager
98	158.75		75.8	92				4300	4.95	160098X/160158XGUD Lager
98	160		75.8	92				4300	4.95	160098X/160160GUD Lager
98	161.925		75.8	92				4300	4.95	160098X/160161XGUD Lager
100	170		84	100				3900	11	180100/180170GUD Lager
100	180		84	100				3900	9.1	180100/180180GUD Lager
100	180.975		84	100				3900	11	180100/180180XGUD Lager
100	190		84	100				3900	11	180100/180190GUD Lager
102	165.1		67.96	87				3900	9.16	141101X/141165XGUD Lager
102	170		84	100				3900	11	180101X/180170GUD Lager
102	180		84	100				3900	11	180101X/180180GUD Lager
102	180.975		84	100				3900	9.28	180101X/180180XGUD Lager
102	190		84	100				3900	10.96	180101X/180190GUD Lager
105	170		84	100				3900	11	180105/180170GUD Lager
105	180		84	100				3900	11	180105/180180GUD Lager
105	180.975		84	100				3900	8.82	180105/180180XGUD Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
105	190		84	100				3900	10.5	180105/180190GUD Lager
108	165.1		67.96	87				3900	9.16	141107X/141165XGSUD Lager
111	180.975		82.6	108				3600	8.34	181111X/181180XGUD Lager
111	190		82.6	108				3600	9.95	181111X/181190GUD Lager
111	190.5		82.6	108				3600	10.05	181111X/181190XGUD Lager
111	200.025		82.6	108				3600	8.34	181111X/181200XGUD Lager
115	165		55	65				3900	3.36	105115/105165GUD Lager
115	180.975		82.6	108				3600	7.84	181115/181180XGUD Lager
115	190		82.6	108				3600	9.45	181115/181190GUD Lager
115	190.5		82.6	108				3600	9.55	181115/181190XGUD Lager
115	200.025		82.6	108				3600	8.34	181115/181200XGUD Lager
118	180.975		82.6	108				3600	7.42	181118/181180XGUD Lager
118	190		82.6	108				3600	9.03	181118/181190GUD Lager
118	190.5		82.6	108				3600	9.13	181118/181190XGUD Lager
118	200.025		82.6	108				3600	8.34	181118/181200XGUD Lager
120	165		55	65				3900	3.36	105120/105165GUD Lager
120	190		82.6	108				3500	8.46	184120/184190GUD Lager
120	190.5		82.6	108				3500	8.46	184120/184190XGUD Lager
120	199		82.6	108				3500	8.46	184120/184199GUD Lager
120	200		82.6	108				3500	8.46	184120/184200GUD Lager
127	196.85		85.74	101.6				3400	8.8	164127X/164196XGUD Lager
127	200.025		85.74	101.6				3400	8.8	164127X/164200XGUD Lager
127	215		92	110				3100	13.54	200127X/200215GUD Lager
127	215.9		92	110				3100	13.54	200127X/200215XGUD Lager
133	196.85		85.74	101.6				3400	8.8	164133X/164196XGUD Lager
133	200.025		85.74	101.6				3400	8.8	164133X/164200XGUD Lager
133	215		92	110				3100	13.54	200133X/200215GUD Lager
133	215.9		92	110				3100	12.49	200133X/200215XGUD Lager
137	215		92	110				3100	13.54	200136X/200215GUD Lager
137	215.9		92	110				3100	11.97	200136X/200215XGUD Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
140	215		92	110				3100	13.54	200139X/200215GUD Lager
140	215.9		92	110				3100	13.54	200139X/200215XGUD Lager
140	241.3		104	126				2900	19.86	240139X/240241XGUD Lager
140	200		78	92.3				3100	9.7	161140/161200GSUD Lager
140	200.025		78	92.3				3100	9.7	161140/161200XGSUD Lager
143	200		78	92.3				3100	9.7	161142X/161200GSUD lager
143	200.025		78	92.3				3100	9.7	161142X/161200XGSUD lager
145	241.3		104	126				2900	18.78	240145/240241XGUD Lager
145	256		92	110				2700	14.49	203145/203256GUD Lager
149	241.3		104	126				2900	18.78	240149X/240241XGUD Lager
150	210		76	92				3000	9.96	163150/163210GUD Lager
152	222.25		81.2	105				3000	10.73	183152X/183222XGUD Lager
152	254		116.9	155				2600	24.87	281152X/281254XGUD Lager
152	266.7		116.9	155				2600	24.87	281152X/281266XGUD Lager
156	254		116.9	155				2600	24.87	281155X/281254XGUD Lager
156	266.7		116.9	155				2600	24.87	281155X/281266XGUD Lager
156	235		92	110				2700	14.49	203156/203235GUD Lager
165	254		88.96	108				2600	14.9	186165X/186254XGUD Lager
170	254		88.96	108				2600	14.9	186170/186254XGUD Lager
178	227.013		63.48	75				2700	5.93	115177X/115227XGUD Lager
178	254		88.96	108				2600	14.9	186177X/186254XGUD Lager
178	288.925		122.25	154				2300	31.8	280177X/280288XGUD Lager
185	258		90	110				2500	11.94	187185/187258GUD Lager
190	266.7		94.14	113.18				2400	15	204190/204266XGUD Lager
191	266.7		94.14	113.18				2400	15	204190X/204266XGUD Lager
191	282.575		91.42	120				2300	19.3	242190X/242282XGUD Lager
191	290		96	114				2200	17	206190X/206290GUD Lager
203	310		121.07	156				2100	32	283203X/283310GUD Lager
203	317.5		121.07	156				2100	35.3	283203X/283317XGUD Lager
210	290		96	114				2200	17	206210/206290GUD Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
210	310		121.07	156				2100	31.2	283210/283310GUD Lager
210	317.5		121.07	156				2100	34.5	283210/283317XGUD Lager
216	355.6		124.72	166				1900	50	284215X/284355XGUD Lager
229	355.6		124.72	166				1900	50	284228X/284355XGUD Lager
230	327.025		90.24	122				1900	23	244230/244327XGUD Lager
230	330		90.24	122				1900	26.84	244230/244330GUD Lager
235	327.025		90.24	122				1900	20	244234X/244327XGUD Lager
235	330		90.24	122				1900	26.8	244234X/244330GUD Lager
235	355.6		124.72	166				1900	47.43	284234X/284355XGUD Lager
254	400.05		114.24	146				1700	53.98	382254X/382400XGUD Lager
275	406.4		140	176				1600	65.94	320275/320406XGUD Lager
280	406.4		140	176				1600	63.18	320280X/320406XGUD Lager
330	482.6		158.72	200				1400	104	380330X/380482XGUD Lager
338	419.1		79	94				1500	30.4	152338X/152419XGUD Lager
356	482.6		100.55	145				1400	57.3	282355X/282482XGUD Lager
381	508		147	187				1300	79.2	303381X/303508XGUD Lager
406	549.275		152.36	200				1200	96.8	323406XS/323549XGSUD Lager
432	533.4		100.78	123				1200	44.7	232431X/232533XGUD Lager
457	596.9		147	187				1100	94.3	300457X/300596XGUD Lager
506	636		147	187				1000	115	307506/307636GUD Lager
25	52		36.5	43				13300	0.48	74025/74052HUWF Lager
30	62		42.5	51				11600	0.66	70030/70062HUWF Lager
30	66.675		42.48	52				10400	0.8	80030/80066XHUWF Lager
30	68		42.48	52				10400	0.8	80030/80068HUWF Lager
32	72		46.5	57				9600	0.86	100031X/100072HUWF Lager
32	76.2		46.5	57				9600	0.86	100031X/100076XHUWF Lager
32	80		46.5	57				9600	0.86	100031X/100080HUWF Lager
33	66.675		42.48	52				10400	0.8	80033X/80066XHUWF Lager
33	68		42.48	52				10400	0.8	80033X/80068HUWF Lager
35	72		46.5	57				9600	0.86	100034X/100072HUWF Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
35	76.2		46.5	57				9600	0.86	100034X/100076XHUWF Lager
35	80		46.5	57				9600	0.86	100034X/100080HUWF Lager
35	66.675		42.48	52				10400	0.74	80035/80066XHUWF Lager
35	72		46.5	57				9600	0.855	100035/100072HUWF Lager
35	76.2		46.5	57				9600	0.86	100035/100076XHUWF Lager
35	80		46.5	57				9600	0.86	100035/100080HUWF Lager
36	72		36.5	42				9600	0.595	102036/102072HUWF Lager
38	76		45.5	57				8800	0.865	101038X/101076HUWF Lager
38	76.2		45.5	57				8800	0.865	101038X/101076XHUWF Lager
38	80		45.5	57				8800	0.865	101038X/101080HUWF Lager
40	76		45.5	57				8800	0.865	101040/101076HUWF Lager
40	76.2		45.5	57				8800	0.865	101040/101076XHUWF Lager
40	80		45.5	57				8800	1.07	101040/101080HUWF Lager
40	85		48.66	55				8200	1.13	112040/112085HUWF Lager
41	76		45.5	57				8800	0.865	101041X/101076HUWF Lager
41	76.2		45.5	57				8800	0.865	101041X/101076XHUWF Lager
41	80		45.5	57				8800	0.865	101041X/101080HUWF Lager
41	85		48.66	55				8200	1.11	112041X/112085HUWF Lager
44	85		48.66	55				8200	1.11	112044X/112085HUWF Lager
44	85		55.66	62				8200	1.19	119044X/119085HUWF Lager
44	88.9		55.66	62				8200	1.19	119044X/119088XHUWF Lager
44	90		51.3	64				7400	1.38	111044X/111090HUWF Lager
44	93.266		51.3	64				7400	1.38	111044X/111093XHUWF Lager
45	85		48.66	55				8200	1.11	112045/112085HUWF Lager
45	85		55.66	62				8200	1.19	119045/119085HUWF Lager
45	88.9		55.66	62				8200	1.19	119045/119088XHUWF Lager
50	90		51.3	64				7400	1.38	111050/111090HUWF Lager
50	93.266		51.3	64				7400	1.38	111050/111093XHUWF Lager
50	96.838		54	65				6900	2.005	110050/110096XHUWF Lager
50	98.425		54	65				6900	2.005	110050/110098XHUWF Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
50	100		54	65				6900	2.005	110050/110100HUWF Lager
51	90		51.3	64				7400	1.38	111050X/111090HUWF Lager
51	96.838		54	65				6900	2.005	110050X/110096XHUWF Lager
51	98.425		54	65				6900	2.005	110050X/110098XHUWF Lager
51	100		54	65				6900	2.005	110050X/110100HUWF Lager
54	96.838		54	65				6900	2.005	110053X/110096XHUWF Lager
54	98.425		54	65				6900	2.005	110053X/110098XHUWF Lager
54	100		54	65				6900	2.005	110053X/110100HUWF Lager
55	96.838		54	65				6900	2.005	110055/110096XHUWF Lager
55	98.425		54	65				6900	2.005	110055/110098XHUWF Lager
55	100		54	65				6900	1.825	110055/110100HUWF Lager
57	96.838		54	65				6900	2.005	110057X/110096XHUWF Lager
57	96.838		54	65				6900	2.005	110057X/110098XHUWF Lager
57	100		54	65				6900	2.005	110057X/110100HUWF Lager
57	100		46.88	58				6600	1.9	113057X/113100HUWF Lager
57	101.6		46.88	58				6600	1.9	113057X/113101XHUWF Lager
57	110		60.3	73				6200	2.47	120057X/120110HUWF Lager
57	112.712		60.3	73				6200	2.47	120057X/120112XHUWF Lager
60	100		46.88	58				6600	1.9	113060/113100HUWF Lager
60	101.6		46.88	58				6600	1.9	113060/113101XHUWF Lager
60	110		60.3	73				6200	2.47	120060/120110HUWF Lager
60	112.712		60.3	73				6200	2.47	120060/120112XHUWF Lager
60	120		59.88	71				5700	2.96	130060/130120HUWF Lager
60	127		59.88	71				5700	2.96	130060/130127HUWF Lager
60	100		46.88	58				6600	1.9	113060X/113100HUWF Lager
60	101.6		46.88	58				6600	1.9	113060X/113101XHUWF Lager
64	110		60.3	73				6200	2.29	120063X/120110HUWF Lager
64	120		59.88	71				5700	2.96	130063X/130120HUWF Lager
64	127		59.88	71				5700	2.96	130063X/130127HUWF Lager
65	120		59.88	71				5700	2.96	130065/130120HUWF Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
65	127		59.88	71				5700	2.96	130065/130127HUWF Lager
70	127		59.88	71				5700	2.96	130069X/130127HUWF Lager
70	112.712		60.3	73				5800	2.085	124069X/124112XHUWF Lager
70	120		59.88	71				5700	2.71	130069X/130120HUWF Lager
70	120		73.12	89				5700	2.79	135069X/135120HUWF Lager
70	112.712		60.3	73				5800	2.085	124070/124112XHUWF Lager
70	120		59.88	71				5700	2.7	130070/130120HUWF Lager
70	127		59.88	71				5700	2.96	130070/130127HUWF Lager
73	120		49.7	64				5500	2.35	123073X/123120HUWF Lager
73	120.65		49.7	64				5500	2.35	123073X/123120XHUWF Lager
73	121.444		49.7	64				5500	2.35	123073X/123121XHUWF Lager
73	123.825		49.7	64				5500	2.35	123073X/123123XHUWF Lager
75	120		49.7	64				5500	2.25	123075/123120HUWF Lager
75	120.65		49.7	64				5500	2.25	123075/123120XHUWF Lager
75	121.444		49.7	64				5500	2.25	123075/123121XHUWF Lager
75	123.825		49.7	64				5500	2.25	123075/123123XHUWF Lager
75	127		60.5	73				5300	3.3	133075/133127HUWF Lager
75	130		60.5	73				5300	3.3	133075/133130HUWF Lager
75	133.35		60.5	73				5300	3.3	133075/133133XHUWF Lager
75	136.525		60.5	73				5300	3.3	133075/133136XHUWF Lager
76	120		49.7	64				5500	2.25	123076X/123120HUWF Lager
76	120.65		49.7	64				5500	2.25	123076X/123120XHUWF Lager
76	123.825		49.7	64				5500	2.25	123076X/123123XHUWF Lager
76	127		60.5	73				5300	3.3	133076X/133127HUWF Lager
76	130		60.5	73				5300	3.3	133076X/133130HUWF Lager
76	133.35		60.5	73				5300	3.3	133076X/133133XHUWF Lager
76	136.525		60.5	73				5300	3.3	133076X/133136XHUWF Lager
78	120		49.7	64				5500	2.25	123077X/123120HUWF Lager
78	120.65		49.7	64				5500	2.25	123077X/123120XHUWF Lager
78	121.444		49.7	64				5500	2.25	123077X/123121XHUWF Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
78	123.825		49.7	64				5500	2.25	123077X/123123XHUWF Lager
80	140		69.14	85				4900	4.545	140080/140140HUWF Lager
81	133.35		58.12	74				4900	2.25	126080X/126133XHUWF Lager
83	133.35		58.12	74				4900	2.25	126082X/126133XHUWF Lager
83	136.525		58.12	74				4900	2.25	126082X/126136XHUWF Lager
83	140		69.14	85				4900	4.345	140082X/140140HUWF Lager
84	133.35		58.12	74				4900	2.4	126084X/126133XHUWF Lager
84	136.525		58.12	74				4900	2.4	126084X/126136XHUWF Lager
85	140		69.14	85				4900	4.145	140085/140140HUWF Lager
85	170		89	106				4200	8.545	210085/210170HUWF Lager
86	133.35		58.12	74				4900	2.4	126085X/126133XHUWF Lager
86	136.525		58.12	74				4900	2.4	126085X/126136XHUWF Lager
89	133.35		58.12	74				4900	2.4	126088X/126133XHUWF Lager
89	136.525		58.12	74				4900	2.4	126088X/126136XHUWF Lager
90	133.35		60.12	76				4800	4	117090/117133XHUWF Lager
90	150		62	75				4400	4.745	131090/131150HUWF Lager
90	152.4		62	75				4400	4.745	131090/131152XHUWF Lager
90	152.4		75.8	92				4300	5.15	160090/160152XHUWF Lager
90	158.75		62	75				4400	4.745	131090/131158XHUWF Lager
90	158.75		75.8	92				4300	5.15	160090/160158XHUWF Lager
90	160		75.8	92				4300	5.15	160090/160160HUWF Lager
90	161.925		75.8	92				4300	5.15	160090/160161XHUWF Lager
90	170		89	106				4200	8.545	210090/210170HUWF Lager
92	150		62	75				4400	4.745	131092X/131150HUWF Lager
92	152.4		62	75				4400	4.745	131092X/131152XHUWF Lager
92	158.75		62	75				4400	4.745	131092X/131158XHUWF Lager
94	150		62	75				4400	4.745	131093X/131150HUWF Lager
94	152.4		62	75				4400	4.745	131093X/131152XHUWF Lager
94	158.75		62	75				4400	4.745	131093X/131158XHUWF Lager
95	150		62	75				4400	4.745	131095/131150HUWF Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
95	152.4		62	75				4400	4.625	131095/131152XHUWF Lager
95	158.75		62	75				4400	4.745	131095/131158XHUWF Lager
95	170		89	106				4200	8.545	210095/210170HUWF Lager
97	150		62	75				4400	4.745	131097/131150HUWF Lager
97	152.4		62	75				4400	4.465	131097/131152XHUWF Lager
97	158.75		62	75				4400	4.745	131097/131158XHUWF Lager
98	152.4		75.8	92				4300	5.15	160098X/160152XHUWF Lager
98	158.75		75.8	92				4300	5.15	160098X/160158XHUWF Lager
98	160		75.8	92				4300	5.15	160098X/160160HUWF Lager
98	161.925		75.8	92				4300	5.15	160098X/160161XHUWF Lager
100	170		84	100				3900	9.52	180100/180170HUWF Lager
100	180		84	100				3900	9.42	180100/180180HUWF Lager
100	180.975		84	100				3900	9.52	180100/180180XHUWF Lager
100	190		84	100				3900	11.12	180100/180190HUWF Lager
102	165.1		67.96	87				3900	9.4	141101X/141165XHUWF Lager
102	170		84	100				3900	9.52	180101X/180170HUWF Lager
102	180		84	100				3900	9.52	180101X/180180HUWF Lager
102	180.975		84	100				3900	9.52	180101X/180180XHUWF Lager
102	190		84	100				3900	11.08	180101X/180190HUWF Lager
105	170		84	100				3900	9.52	180105/180170HUWF Lager
105	180		84	100				3900	9.52	180105/180180HUWF Lager
105	180.975		84	100				3900	9.06	180105/180180XHUWF Lager
105	190		84	100				3900	10.62	180105/180190HUWF Lager
108	165.1		67.96	87				3900	9.4	141107X/141165XHSUWF Lager
111	180.975		82.6	108				3600	8.6	181111X/181180XHUWF Lager
111	190		82.6	108				3600	10.1	181111X/181190HUWF Lager
111	190.5		82.6	108				3600	10.4	181111X/181190XHUWF Lager
111	200.025		82.6	108				3600	8.6	181111X/181200XHUWF Lager
115	165		55	65				3900	3.45	105115/105165HUWF Lager
115	180.975		82.6	108				3600	8.1	181115/181180XHUWF Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
115	190		82.6	108				3600	9.6	181115/181190HUWF Lager
115	190.5		82.6	108				3600	9.9	181115/181190XHUWF Lager
115	200.025		82.6	108				3600	8.6	181115/181200XHUWF Lager
118	180.975		82.6	108				3600	7.68	181118/181180XHUWF Lager
118	190		82.6	108				3600	9.18	181118/181190HUWF Lager
118	190.5		82.6	108				3600	9.48	181118/181190XHUWF Lager
118	200.025		82.6	108				3600	8.6	181118/181200XHUWF Lager
120	165		55	65				3900	3.45	105120/105165HUWF Lager
120	190		82.6	108				3500	8.8	184120/184190HUWF Lager
120	190.5		82.6	108				3500	8.8	184120/184190XHUWF Lager
120	199		82.6	108				3500	8.8	184120/184199HUWF Lager
120	200		82.6	108				3500	8.8	184120/184200HUWF Lager
127	196.85		85.74	101.6				3400	9.2	164127X/164196XHUWF Lager
127	200.025		85.74	101.6				3400	9.2	164127X/164200XHUWF Lager
127	215		92	110				3100	13.9	200127X/200215HUWF Lager
127	215.9		92	110				3100	13.9	200127X/200215XHUWF Lager
133	196.85		85.74	101.6				3400	9.2	164133X/164196XHUWF Lager
133	196.85		76.74	92.6				3400	8.5	164133X/164196XHSUWF Lager
133	200.025		85.74	101.6				3400	9.2	164133X/164200XHUWF Lager
133	215		92	110				3100	13.9	200133X/200215HUWF Lager
133	215.9		92	110				3100	12.85	200133X/200215XHUWF Lager
137	215		92	110				3100	13.9	200136X/200215HUWF Lager
137	215.9		92	110				3100	12.33	200136X/200215XHUWF Lager
140	215		92	110				3100	13.9	200139X/200215HUWF Lager
140	215.9		92	110				3100	13.9	200139X/200215XHUWF Lager
140	241.3		104	126				2900	20.485	240139X/240241XHUWF Lager
140	200		78	92.3				3100	10	161140/161200HSUWF Lager
140	200.025		78	92.3				3100	10	161140/161200XHSUWF Lager
143	200		78	92.3				3100	10	161142X/161200HSUWF Lager
143	200.025		78	92.3				3100	10	161142X/161200XHSUWF lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
145	241.3		104	126				2900	19.405	240145/240241XHUWF Lager
145	256		92	110				2700	14.87	203145/203256HUWF Lager
149	241.3		104	126				2900	20.485	240149X/240241XHUWF Lager
150	210		76	92				3000	10.2	163150/163210HUWF Lager
152	222.25		81.2	105				3000	11.15	183152X/183222XHUWF Lager
152	254		116.9	155				2600	25.6	281152X/281254XHUWF Lager
152	266.7		116.9	155				2600	25.6	281152X/281266XHUWF Lager
156	254		116.9	155				2600	25.6	281155X/281254XHUWF Lager
156	266.7		116.9	155				2600	25.6	281155X/281266XHUWF Lager
156	235		92	110				2700	14.87	203156/203235HUWF Lager
165	254		88.96	108				2600	15	186165X/186254XHUWF Lager
170	254		88.96	108				2600	15	186170/186254XHUWF Lager
178	227.013		63.48	75				2700	6.15	115177X/115227XHUWF Lager
178	254		88.96	108				2600	15	186177X/186254XHUWF Lager
178	288.925		122.25	154				2300	32.6	280177X/280288XHUWF Lager
185	258		90	110				2500	12.3	187185/187258HUWF Lager
190	266.7		94.14	113.18				2400	15.5	204190/204266XHUWF Lager
191	266.7		94.14	113.18				2400	15.5	204190X/204266XHUWF Lager
191	282.575		91.42	120				2300	20	242190X/242282XHUWF Lager
191	290		96	114				2200	17.3	206190X/206290HUWF Lager
203	310		121.08	156				2100	32.8	283203X/283310HUWF Lager
203	317.5		121.08	156				2100	36.3	283203X/283317XHUWF Lager
210	290		96	114				2200	17.3	206210/206290HUWF Lager
210	310		121.08	156				2100	32	283210/283310HUWF Lager
210	317.5		121.08	156				2100	35.5	283210/283317XHUWF Lager
216	355.6		124.72	166				1900	51	284215X/284355XHUWF Lager
229	355.6		124.72	166				1900	51	284228X/284355XHUWF Lager
230	327.025		90.24	122				1900	23.2	244230/244327XHUWF Lager
230	330		90.24	122				1900	27.35	244230/244330HUWF Lager
235	327.025		90.24	122				1900	21	244234X/244327XHUWF Lager

Grunndimensjoner					Grunnleggende belastningsgrad		Hastighetskarakterer		Messe	Modellllllllllllllllllllllllllll
Grunndimensjoner					dynamisk	statisk	Referansehastighet	Begrensende hastighet	Messe	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
235	330		90.24	122				1900	27	244234X/244330HUWF Lager
235	355.6		124.72	166				1900	48.43	284234X/284355XHUWF Lager
254	400.05		114.24	146				1700	55.5	382254X/382400XHUWF Lager
275	406.4		140	176				1600	67.6	320275/320406XHUWF Lager
280	406.4		140	176				1600	64.84	320280X/320406XHUWF Lager
330	482.6		157.73	200				1400	105	380330X/380482XHUWF Lager
338	419.1		79	94				1500	30.9	152338X/152419XHUWF Lager
356	482.6		100.55	145				1400	58.7	282355X/282482XHUWF Lager
381	508		147	187				1300	80	303381X/303508XHUWF Lager
406	549.275		152.36	200				1200	98.25	323406XS/323549XHSUWF Lager
432	533.4		100.78	123				1200	45	232431X/232533XHUWF Lager
457	596.9		147	187				1100	95	300457X/300596XHUWF Lager
506	636		147	187				1000	116	307506/307636HUWF Bearing

Engineering the Future of Motion

Om UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China BT2B 332504/HA2 -Dobbelrad koniske rullelager suppliers and OEM/ODM BT2B 332504/HA2 -Dobbelrad koniske rullelager company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Mer om oss Ukl Bearing Manufacturing Co.,Ltd

0+

år

Bransjeerfaring
0+

Modellmangfold
0+

Antall ansatte
0

$

Årlig eksportverdi

Hedersbevis

Nyheter

Hvorfor NU 309 sylindriske rullelager utmerker seg i motor- og girkassedesign?
04 Jun, 2026
Key takeaway: NU 309-lageret utmerker seg som et flytende lager For motor- og girkassedesign der termisk ekspansjon av akselen er en kritisk bekymring, NU 309 lager gir...

LES MER
Slik installerer du en 2206 AV Nilos-ring (trinn-for-trinn-veiledning)
28 May, 2026
Installer med den åpne siden mot lageret For å installere riktig 2206 AV Nilos Ring, plasser den slik at den konvekse (åpne) siden peker mot lagerbanen. Ringen må sitte ...

LES MER
Hvordan velge riktig vinkelkontaktkulelager for høyhastighetsapplikasjoner?
21 May, 2026
Å velge den optimale rullekomponenten for høyhastighets roterende maskineri krever en dyp forståelse av driftsforhold, intern geometri og termisk styring. Blant presisjonsmaskiner, vinkelko...

LES MER
Presisjon under trykk: nøkkelfaktorer som driver valg av lagre for medisinsk utstyr
14 May, 2026
I det raskt utviklende feltet av medisinsk teknologi, kan selv den minste komponenten avgjøre suksessen til en livreddende enhet. Blant disse, medisinsk utstyr lagre spille en stille,...

LES MER
